Sany 62M Concrete Pump Truck with 170 m³/h Output and 13.5 MPa Pressure on Volvo Chassis

Sany 62Meters 62M Concrete Pump Truck Volvo Chassis Used Pump Trucks 2021

Overview:
We are offering a meticulously maintained 2021 SANY SYM5440THBV 62-meter truck-mounted concrete pump. This is a rare opportunity to acquire a virtually new, high-specification pump that has seen minimal use, with very few worked hours. Mounted on a robust and reliable Volvo chassis, this machine represents the pinnacle of SANY's engineering and is ready for immediate and demanding projects.

Key Highlights:

• Extremely Low Hours: very few hours worked.

• Immaculate Condition: Maintained to the highest standards, presenting like new.

• Powerful & Reliable Volvo Chassis: Ensures superior mobility, comfort, and on-road performance.

• Late Model (2020): Incorporates modern pumping technology and efficiency.

• Ideal for High-Rise and Large-Scale Projects: The 62-meter reach offers excellent versatility.

Detailed Technical Specifications:

1. Pump Unit Model: SANY SYM5440THBV

2. Boom System:

• Reach: 62 meters (approx. 203 feet)

• Vertical Reach: 58.2 meters

• Horizontal Reach: 54.5 meters

• Folding Configuration: RZ-type (Roll & Fold)

• Number of Sections: 5 sections

• Boom Control: Full proportional hydraulic remote control with emergency safety system.

3. Pumping System:

• Theoretical Concrete Output: 170 m³/h

• Max Theoretical Pressure: 13.5 MPa

• Cylinder Diameter & Stroke: Φ260 × 2100 mm

• S-Valve Design: High-chrome, wear-resistant cast iron for excellent sealing and durability.

• Hopper Capacity: 0.7 m³

• Agitator Speed: 0-22 rpm (hydraulically driven)

4. Chassis:

• Make & Model: Volvo (Specific model, e.g., FMX 8x4, to be confirmed)

• Configuration: 8x4 (Four Axles, Eight Wheels Drive)

• Engine: Volvo Diesel Engine, likely meeting Euro V emission standards.

• Horsepower: Typically ~400 HP range (exact rating depends on Volvo model).

• Cab: High-comfort, sleeper cab with air conditioning and modern driver amenities.

• Fuel Tank Capacity: Large capacity (approx. 400+ liters) for extended operation.

5. Hydraulic System:

• Type: Closed-loop, intelligent electro-hydraulic control system.

• Pump: High-efficiency variable displacement axial piston pumps.

• System Features: Energy-saving mode, smooth and precise control, excellent suction performance.

6. General Data:

• Overall Length: ~15.0 meters

• Overall Width: ~2.5 meters

• Overall Height: ~4.0 meters (in traveling position)

• Max Concrete Grade: Can efficiently pump up to C60 grade concrete.

• Line Diameter: 125 mm

Condition & Maintenance:
This pump is in outstanding condition, both mechanically and cosmetically. It has been serviced according to SANY's strict maintenance schedule by certified technicians. All systems—hydraulics, pumping, boom mechanics, and chassis—are in perfect working order. It has no known defects or past damage.

Summary:
This 2020 SANY 62m pump on a Volvo chassis is an exceptional find for any serious contractor. Its low hours, legendary Volvo reliability, and SANY's top-tier pumping technology combine to offer unparalleled value and performance. Avoid the lead time and cost of a new unit and acquire a machine that is effectively new and ready to work.

Contact us today to arrange a full inspection and detailed equipment demonstration.

170 m³/h Output Concrete Pump Truck

13.5 MPa Pressure Truck Mounted Concrete Pump

44000kg Gross Weight Concrete Boom Pump Truck

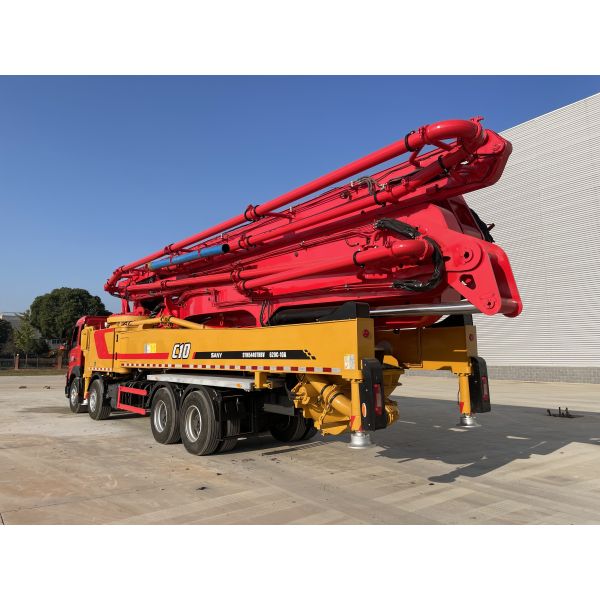

Sany 62M Concrete Pump Truck with 170 m³/h Output and 13.5 MPa Pressure on Volvo Chassis Images
