Brand Name : ISUZU
Place of Origin : China
MOQ : 1
Price : USD8300-USD60000 EXW
Payment Terms : ,L/C,T/T
Delivery Time : in two weeks
Packaging Details : Bulk Cargo Shipping
Key Features & Configurations
| Basic Information | Details |
| Drive Configuration | 4X2 |
| Wheelbase | 5200mm |
| Engine | Qingling Isuzu 4HK1-TC |
| Transmission | Isuzu MLD-6Q |
| Dimension(L*W*H) | 8955*2396*3350m |
| Front Track | 1680mm |
| Rear Track | 1650mm |
| Curb Weight | 4.65 tons |
| Rated Payload | 4.8 tons |
| Max Speed | 110km/h |
| Place of Origin | China |
| Fuel Type | Diesel |
| Engine Parameters | |
| Engine Brand | Qingling Isuzu |
| Engine Model | Qingling Isuzu 4HK1-TC |
| Number of Cylinders | 4 |
| Fuel Type | Diesel |
| Cylinder Arrangement | Inline |
| Displacement | 5.193L |
| Emission Standard | China III / Euro III |
| Max Output Power | 129kW |
| Max Horsepower | 175hp |
| Max Torque | 500N·m |
| Engine Configuration | High-pressure common rail, precise electronic control, multi-stage injection, optimal combustion, exhaust gas recirculation, dual-stage fuel filtration |
| Transmission Parameters | |
| Transmission Model | Isuzu MLD-6Q |
| Transmission Brand | Isuzu |
| Shifting Method | Manual |
| Forward Gears | 6 |
| Reverse Gears | 1 |
| Cab Parameters | |
| Passenger Capacity | 3 |
| Seat Rows | 1.5 |
| Chassis Parameters | |
| Front Axle Load Capacity | 3250kg |
| Rear Axle Description | 6395 |
| Leaf Spring Count | 8/10+6 |
| Tire Parameters | |
| Tire Specifications | 9.5R17.5, 8.25-20, 8.25R20 |
| Number of Tires | 6 |
| Tire Specifications (Metric) | 9.5 |








1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
|
|

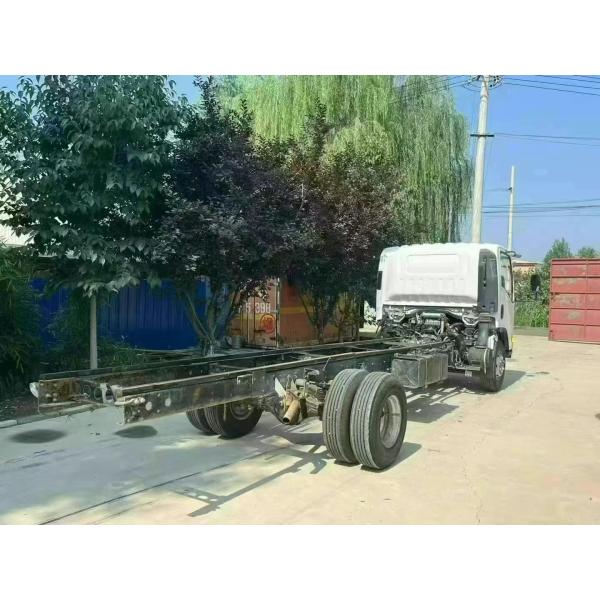

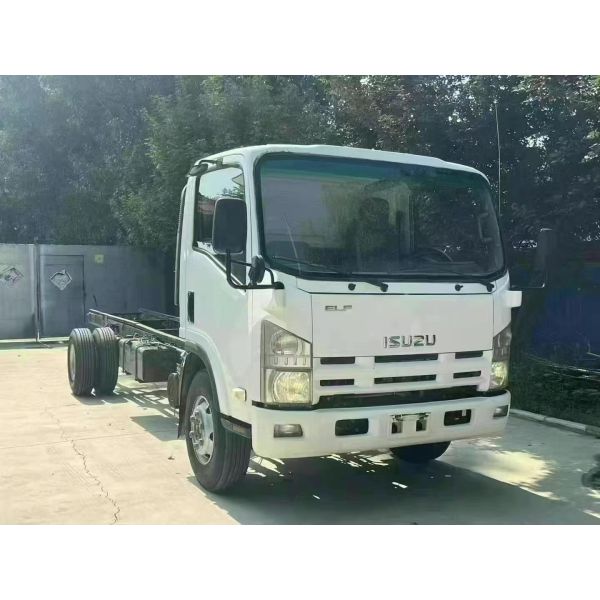

USED ISUZU chassis 2-axle Light-Duty truck Pickup truck construction truck Images |
